Complete wall system configurations and assembly details for various substrates and applications. Select the assembly that best fits your project requirements.

Back to Resource Center

Categories

Back to Resource Center

Drainage Systems

WaterWay drainage solutions for moisture management

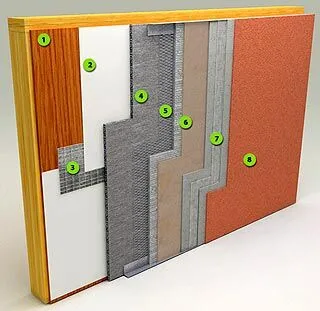

A cross-section diagram of a multi-layered wall system with eight labeled layers, showing materials like wood, insulation, mesh, and exterior coatings arranged in sequence from inside to outside.

Layer Configuration

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) – optional
  4. WaterWay Rainscreen Drainage Mat
  5. Lath
  6. Scratch & Brown Coat (stucco)
  7. Base Coat & Reinforcing Mesh – optional (PRM or Stuc-O-Base)
  8. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
DOC
Video

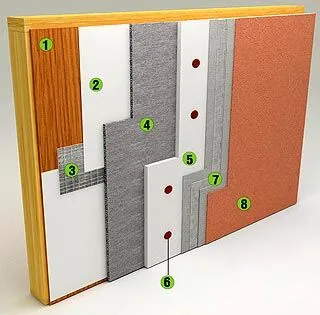

A labeled diagram shows the cross-section of a multi-layered wall with eight numbered layers, each made of different materials, demonstrating wall construction or insulation components.

Layer Configuration

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) – optional
  4. WaterWay Rainscreen Drainage Mat
  5. Insulation Board
  6. Mechanical Fasteners (Insulation)
  7. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  8. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
PDF

Stucco Systems

Traditional and EIFS stucco applications

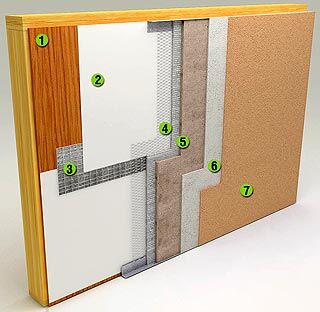

A cross-sectional diagram of a wall showing seven labeled construction layers, including wood, foam insulation, mesh, adhesive, multiple protective layers, and an outer textured finish.

Layer Configuration

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) – optional
  4. Lath
  5. Scratch & Brown Coat (stucco)
  6. PRM or Stuc-O-Base – optional
  7. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
DOC
PDF

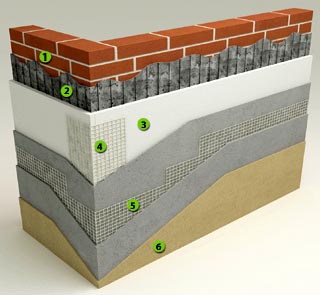

A cross-section diagram of a wall corner showing six construction layers, including brick, insulation, mesh, and plaster, each labeled with a green numbered circle from 1 to 6.

Layer Configuration

  1. Cementious Substrate Brick / Block / Concrete
  2. PRM or Stuc-O-Base / Adhesive
  3. Insulation Board
  4. Reinforcing Corner Mesh
  5. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  6. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
PDF

Substrate Applications

Direct application to various substrates

Layer Configuration

  1. Cement Board
  2. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  3. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
PDF
Video

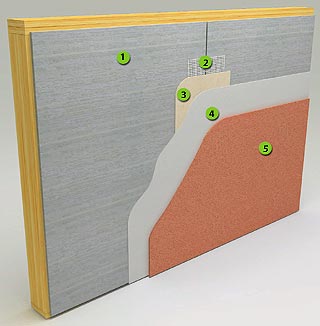

A cross-sectional view of a wall with five labeled layers, including a wood base, gray panels, mesh reinforcement, a thin light layer, and a textured reddish outer layer.

Layer Configuration

  1. Cement Board
  2. Reinforcing Mesh
  3. Elastomeric Joint Compound
  4. PrimeSeal™ (Primer)
  5. Stuc-O-Flex Elastomeric Acrylic Finish
PDF
Video

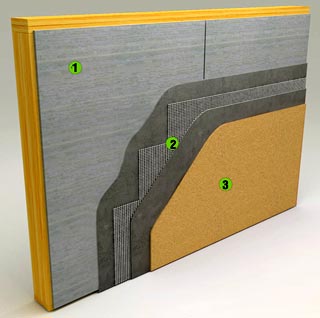

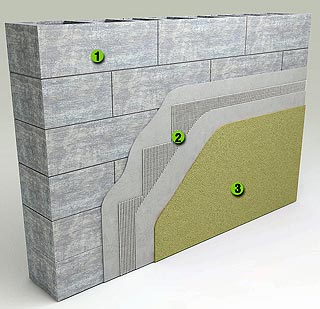

A cross-section diagram of a building wall with three labeled layers: exterior bricks (1), a thin middle layer (2), and a thick inner layer of insulation material (3).

Layer Configuration

  1. Cementitious Substrate Brick / Block / Concrete
  2. Base Coat & Reinforcing Mesh (PRM or Stuc-O-Base) optional
  3. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
PDF

Metal Panel Systems

Applications for metal and insulated panel substrates

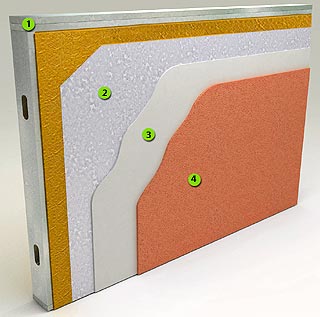

A cross-section diagram of an insulated wall system showing four labeled layers: a metal support panel, white insulation, a lighter middle layer, and an outer orange textured finish.

Layer Configuration

  1. Framing
  2. Insulated Metal Panels
  3. Primer (as required)
  4. Stuc-O-Flex Elastomeric Acrylic Finish
PDF

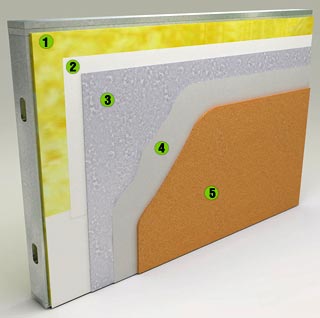

A cross-section of a wall showing five numbered layers: metal outer shell (1), white insulation (2), gray plaster (3), another gray layer (4), and an outer orange layer (5).

Layer Configuration

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Metal or ACM Panel
  4. Primer (as required)
  5. Stuc-O-Flex Elastomeric Acrylic Finish
PDF

Specialty Systems

Specialized construction applications

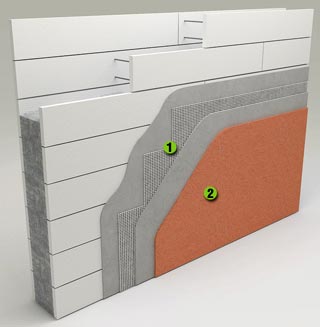

A cross-section diagram of a wall showing multiple construction layers, including insulation boards, mesh reinforcement, base coat, and an orange exterior finish, labeled with green numbers 1 and 2.

Layer Configuration

  1. Base Coat & Reinforcing Mesh (PRM or Stuc-O-Base)
  2. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
PDF
